AC 110V 120W Worm Gear Reducer Motor With Speed Controller 1:80 Reduction Ratio Gearmotor Adjustable Variable Speed High Torque Reducer Gearbox Gear Motor 1650 RPM

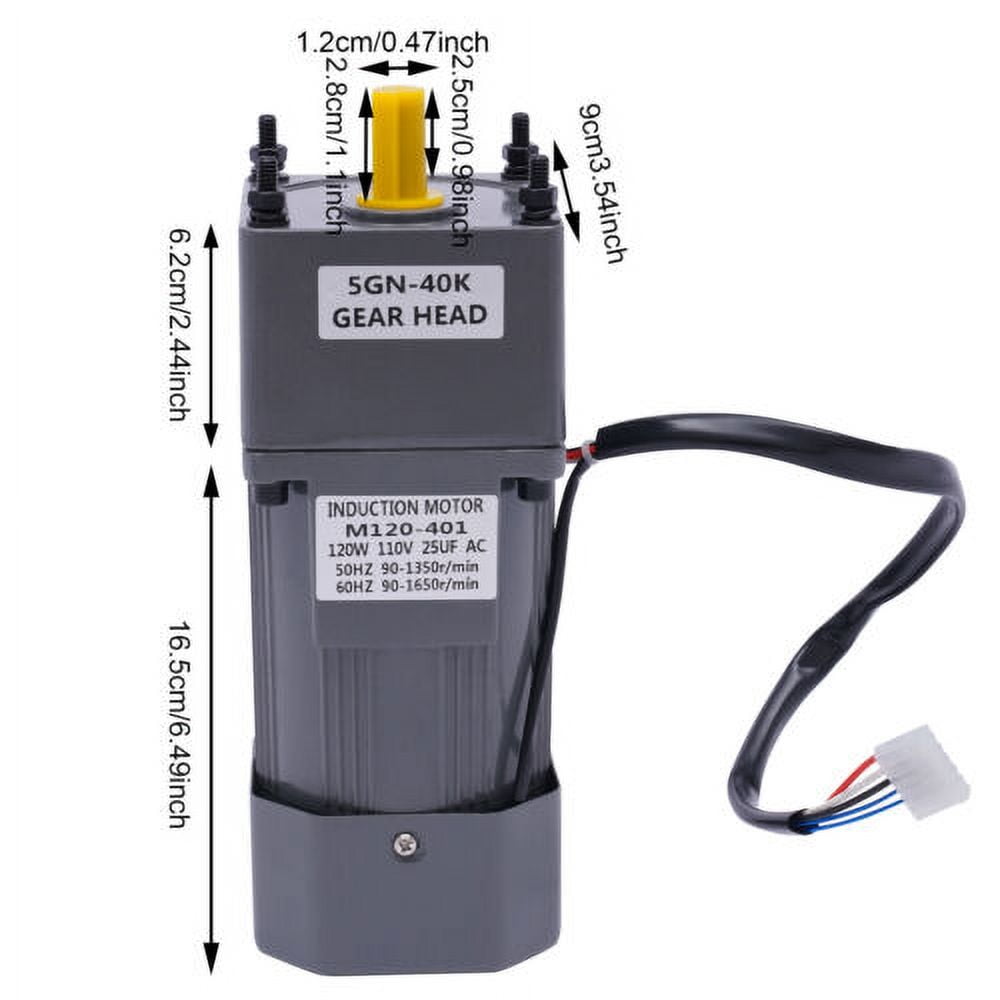

Key Features Stable Operation: Both ends of the rotor of the speed control motor are equipped with ball bearings, which makes it run with low friction and produces low temperature, giving you a more stable operation. You just need to plug the governor cable into the jack of the motor cable. Low Noise: This worm gear motor with a copper coil operates with a low noise level, so it will protect your hearing. Wiring Port: The port is designed to make it easy for you to switch between positive and negative wires and easily achieve positive and negative rotation. Specification Material: Aluminum Alloy, Copper Voltage: 110V Wattage: 120W Rated Torque: 20NM Reduction Ratio: 1:40(40K) Maximum Output Speed: 33r/min Safe Speed Range: 23-33r/min Motor Size: 16.7*9cm/6.6*3.5inch Size of the Section Connected to the Gearbox: 9*9cm/3.5*3.5inch Hole Diameter: 1.4cm/0.6inch Size of Governor: 10*6*9cm/3.9*2.4*3.5inch Motor Package Size: 32*12*12cm/12.6*4.7*4.7inch Speed Governor Package Size: 18*10*7cm/7.1*3.9*2.8inch Net Weight:4.7kg/10lbs Gross Weight: 5kg/11lbs Package Included 1* Worm Gear Motor 1* Speed Governor Notes 1.When the motor is working, it is normal for the temperature to rise to about 65 degrees Celsius, please 【Product parameter】Rated Voltage: AC 110V; Maximum Output Speed: 33RPM ; Safe Speed Range: 23-33RPM; Rated Torque: 20NM; Rated Power: 120W; Reduction Ratio: 1:40(40K); Shaft Bore Diameter: 14mm; 【Long Service Life】The housing of this worm gear motor is made of hard aluminum alloy which can protect the internal parts well. The coil inside is a solid and durable copper coil. Therefore, this motor has a long service life. Moreover, this motor has a maximum speed of 33 R/MIN. 【Speed Control Knob】There is a speed knob on the speed governor. You can control the speed of the motor by gently twisting it. Moreover, there is a speed scale to facilitate you to adjust it to the right speed. 【Convenient Vertical Output】The output shaft of this motor is at a right angle to the motor body and can output at 90 degrees. This package contains not only the motor but also the speed governor.
